Audible Nursing Call Systems General Definition
General Features
In addition to the general nursing call system, it is a nursing call system, with which the nurse can talk with the patient calling and which records and records this conversation. Thanks to this feature, the nurse can learn about the reason of patient call before getting close to the patient and make the necessary preparations before going for help.
Audible Nursing call console features
It has a touch screen. All operations can be established thanks to this touch screen. The keyboard can be connected in necessary conditions. The voice signals between the modules and the console are transferred totally as digital. By this way, the voice signal transferred is not affected from the external factors and create straying. There is a professional announcement microphone so that the nurse can talk. It is possible to record and report the conversations with patients.
Audible Nursing Call Room Module
It provides the communication of the audible nursing call console with the audible call outlets in the patient rooms. Each room is assigned with one module for usage. The voice signals between the audible room module and audible call outlets are transferred totally as digital, as it occurs between the voice signal room module and console. The outlets in the room can be addressed separately. By this way, all beds in the room can be addressed.
Audible Nursing Call Outlet
It is produced from a decorative looking anti-bacterial ABS raw material. There is a back lighted emergency call and reset button so that they can be visible in dark. It can be assembled easily. All connects are made with RJ45 socket. It has a small sized high powered industrial speaker.
Audible Nursing Call Patient Hand Set
It is produced from a decorative looking anti-bacterial ABS raw material. There is a back lighted emergency call and reset button so that they can be visible in dark.
<< back
|
 |
| |
Audible Nursing Call System
Nursing Call Panel
General Features |
- It can display 5 separate calls simultaneously.
- Clock and thermometer feature available.
- Gives priority for emergency calls.
- System test feature available.
- Gives audible and visual warnings for call types.
- Usable with a PC program (Graphical floor plan application).
- Works together with Hypercom and panel one by one and double combinations.
- Emergency and CODE BLUE call feature available.
For more information:
<< back
|
|
 |
| |
Hypercom Nursing Call Panel
General Features |
- Wall Type 32 Address capacity, clock and temperature indicator.
- Wall Type 64 Address capacity, clock and temperature indicator.
- Wall Type 256 Address capacity, clock and temperature indicator.
|
For more information:
<< back
|
 |
| |
HCS 1000 Graphics Software System
General Features |
- HCS 1000 Graphics Software System (For PC applications)(excluding PC).
- HCS 1000 Additional user license (For PC applications)(excluding PC).
- Ability for patient record and nurse record.
- Graphic Display Floor plan feature.
- Ability for becoming Network, password user feature.
- Ability for saving the past calls.
- Turkish menu and options for different languages.
- Ability for Other PC or Hypercom diverting feature.
- Nursing call system computer program.
- Patient record, nurse record, floor plan, language options, diverting to other pc or hypercom, operable as network.
- Network operability.
- User Password.
- Past call record and transferability to excel.
|
For more information:
<< back
|
 |
| |
Headboard Nursing Call Reset Unit
General Features |
- Antibacterial, elegant and useful cover.
- Lock socket for plugging in/out the hand set easily.
- Decorative cover for the socket input, for using without handset.
- Ergonomic design for placing in embedded conduit boxes.
- Continuous illumination for locating the emergency calls and reset buttons easily in dark.
- Secondary output socket for illumination control module
|
For more information:
<< back
|
 |
| |
Wireless Headboard Nursing Call Reset Unit
For more information:
<< back
|
 |
| |

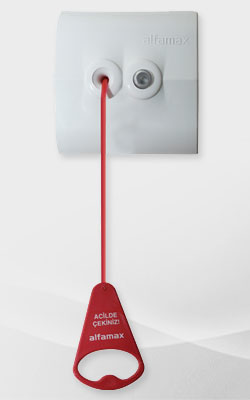

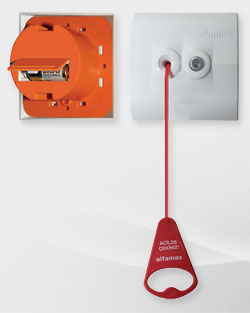

Emergency Corded Nursing Call Button
General Features |
- It is used in bathrooms or WCs of hotels and hospitals.
- The emergency call is sent with the pulling of the cord.
- The orange section of the overdoor light flashes.
- Easy assembly with RJ 45 socket.
|
For more information:
<< back |
 |
| |
Wireless Emergency Corded Nurse Call Button
For more information:
<< back |
 |
| |
Corded Nursing Call Handset
General Features |
- Antibacterial, elegant and useful cover.
- It is connected to the headboard units usually and kept hold of by the patients.
- There is 1 nursing call button on it.
- There are options for controlling the room light and reading light available.
|
For more information:
<< back
|
 |
| |
Overdoor light
General Features |
- They are placed above the room doors located in the corridor.
- LEDs have red, green and orange colors.
- They flash per call type.
- It provides easy assembly with RJ 45 socket.
- Application with flush mounted conduit boxes.
- Usage with surface mounted case.
|
For more information:
<< back
|
 |
| |
Code Blue Nursing Call Button
General Features |
“Code Blue” system, which can be used optionally as independent, can be integrated to Nursing Call System as well. The system in subject works with a “Code Blue” button and an Encoder. The button is addressed depending the choice of the hospital by assembling in the floor corridors, patient rooms or any determined special points, in which the emergency state is of subject. The button is pressed during an emergency case and the call transmits the “Code Blue” message to the determined emergency response team by the hospital management. This message is transmitted to the concerning team through “Emergency Voice Announcement System” and “Pager” or optionally, Dect Telephone or SMS. The team meets in the address of the message for responding the condition. A "Safety Code" can be added depending on the chosen "Code Blue" button. Once this button is pressed, the emergency condition information is transmitted to the hospital and responding the condition is provided. |
For more information:
Code Blue Figure pdf:
<< back
|
 |
| |
Pink Code
<< back |
 |
| |
Room / Bed Address Module
General Features |
- It provides the communication of system.
- Easy communication with aluminum case RJ45 Socket.
- It monitors and controls the terminals.
- It can be programmed through the panel.
|
For more information:
<< back
|
 |
| |
Room Light Control Module
General Features |
- It is used for controlling the room light and reading light.
- It provides easy connection with RJ45 Socket.
|
For more information:
<< back
|
 |
| |
Multi Switch Module
General Features |
- It is used for connecting different modules to each other.
- 5 units can be connected as maximum.
- Easy connection with RJ45 Socket.
|
For more information:
<< back
|
 |
| |
Accessories
For more information:
